Series M
Series H:

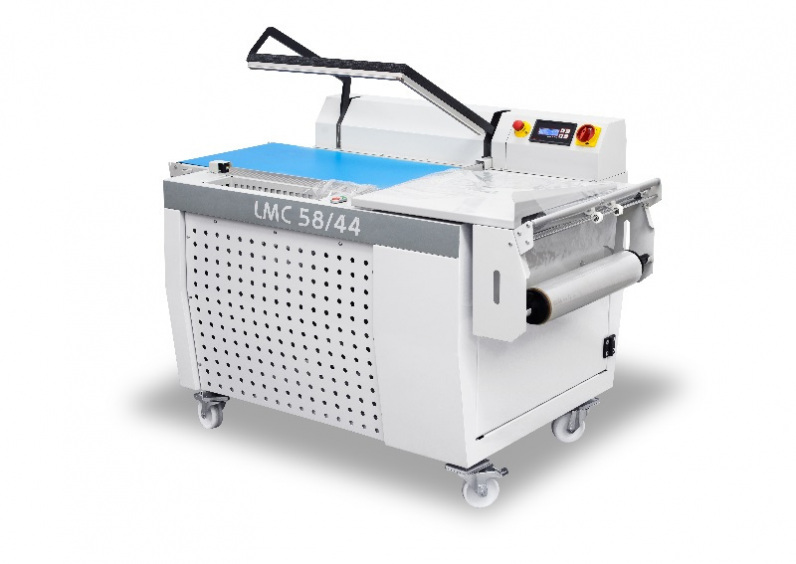

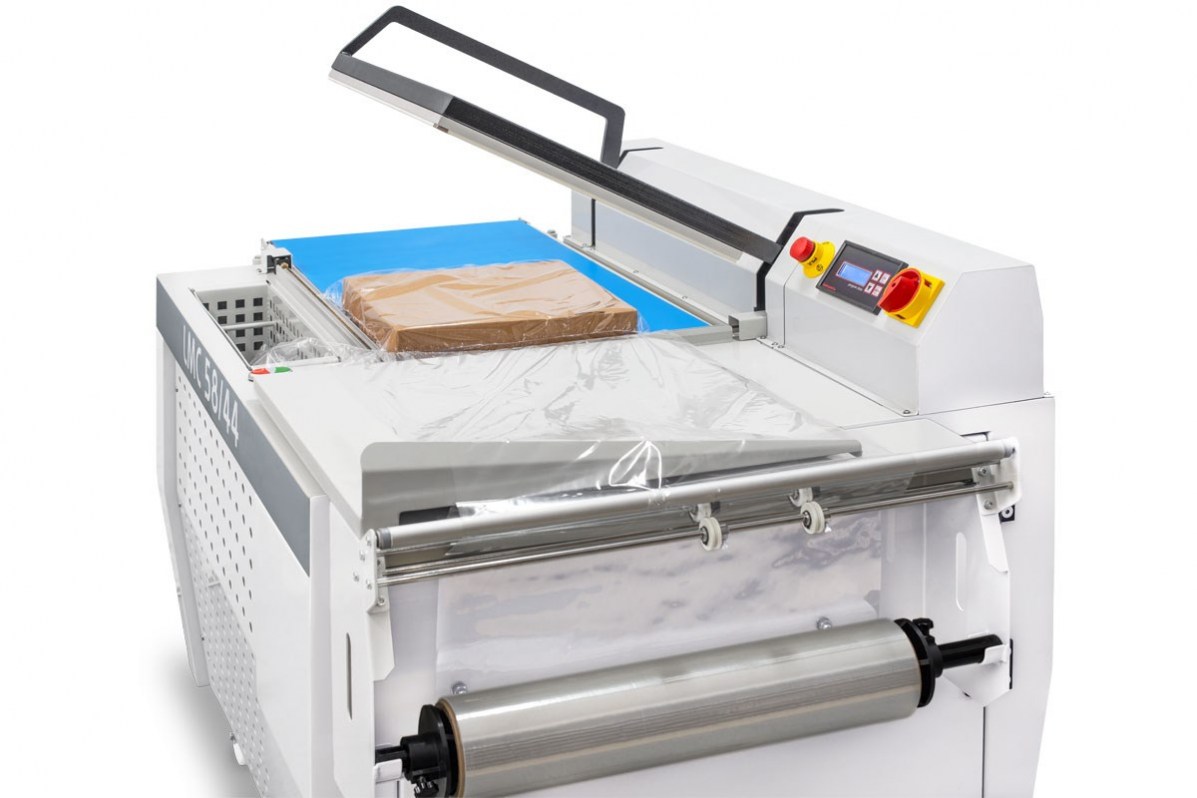

LMC 58/44-H | LMC 80/65-H | LMC58/44M | LMC 80/65-M | LMC 95/65-M | |
Accionamiento | Manual | Manual | Motor | Motor | Motor |
Marco soldadura | 580 x 440 mm | 800 x 650 mm | 580 x 440 mm | 800 x 650 mm | 950 x 650 mm |
Ancho max. bobina | 550 mm | 680 mm | 550 mm | 680 mm | 680 mm |
Consumo medio | 1,4 kW | 1,8 kW | 1,4 kW | 1,8 kW | 2 kW |
Dimensiones | 760 x 1500 x 1200 mm | 1100 x 2250 x 1200 mm | 760 x 1500 x 1200 mm | 1100 x 2250 x 1200 mm | 1300 x 2600 x 1250 mm |
Peso neto | 144 kgs | 196 kgs | 148 kgs | 201 kgs | 217 kgs |
